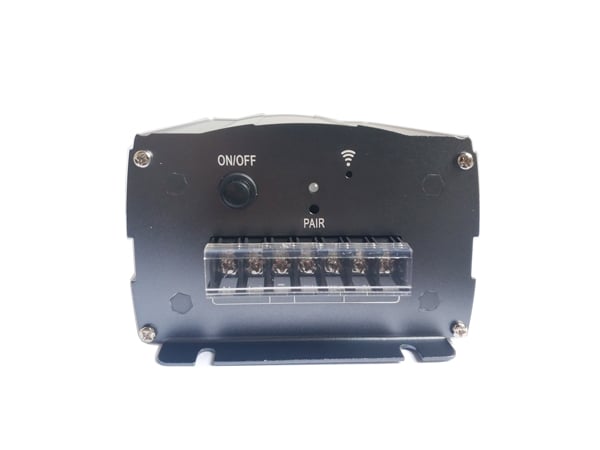

Standard ON-OFF Mode Adapter

The standard ON-OFF mode transformer adapter can control the smart PDLC glass into transparent status(power on) and opaque status(power off) easily. You can connect with a wall control panel or just use the remote controller to control it.
•  Applicability: Suitable for various smart PDLC films or glass that input voltage AC 60V.
•  Operability: Easy to operate, you can operate through wall switch panel or remote control.
•  Diversified control: In addition to the standard wall switch panel and remote control, can also integrate with magnetic induction switch, relay switch, etc.
•  Safety: Weak current control, the wall switch panel is not afraid of leakage and electric shock in humid places.

Product Details

Our switchable PDLC film and switchable PDLC glass are working on voltage 60V AC. So will need a transformer adapter to change the voltage from 220V/110V AC down to 60V AC, the Standard ON-OFF mode transformer adapter can be controlled by a normal wall switch and the remote control at the same time, offer you a convenient way to control your smart glass.

Product Specification

Input Voltage AC 220V/110V, 50HZ/60HZ, Sine Wave
Output Voltage AC 60V
Power watt type 50Watt, 100Watt, 200Watt
Control Way Manual Switch, Remote Controller(Two ways)
Connect Materials Cable, RF: 433MHz
Protective Function Short circuit protection
Display Indicator LED Light
Dimension (L*H*W): 11*7*14cm(50W, 100W); 12*8*16cm(200W)

Wire connection instruction:

ON/OFF Mode Adapter Control Ways Display

Now we show you a video about how our ON/OFF mode adapter can control the Smart PDLC Film

FAQ

Q: How can I control the smart glass or smart film?

A: You can connect with a manual switch to control, like a wall switch panel; Or you can simply use the remote control to control it. Or you can connect both ways, then choose the one you like.

Q: Does this power supply have a dimmer function?

A: No, this adapter can only control the smart glass or smart film in ON or OFF status, if you need to dimmer control your smart glass, please choose our dimmer control power adapter.

Q: Can I use a smartphone to control smart glass with this power supply?

A: If you have a smartphone control module, you can connect with our adapter by using the relay switch. Your phone control module controls the relay switch, and the relay switch connects with our adapter. Details connection instruction, please contact our salesperson.

If you don’t have a smartphone control module, then can choose our dimmer control power adapter, this adapter already integrated with smartphone control, you only need to download our app, register then can control it by your phone.

Q: How many remote controllers can be paired to one power supply?

A: Normally 3-5 remote is available. Except for the normal remote controller, can also be paired with the wireless wall switch panel, if it’s RF 433mhz frequency.

Q: How many smart films or smart glass can be connected to one power supply?

A: For this power adapter, we have a maximum 200Watt, which can power a maximum of 20 square smart PDLC glass or PDLC film. If need one power adapter to connect 30, 40, or 50 square meters of smart glass together, please contact our salesperson to quote the suitable one for you.
