Non-adhesive PDLC Film

Non-adhesive PDLC Film is the original type (standard type) PDLC film, this film is mainly designed to sandwich laminated between 2 layers of glass in order to make a final switchable PDLC glass product.
•  PDLC (Polymer Dispersed Liquid Crystal) Film is an electrically switchable film that Liquid Crystal Polymers laminated in between 2 ITO films.
•  The film is non-adhesive and needs to be sandwich laminated between two-layer glass panels to make it into switchable PDLC glass.
•  With the flick of a switch, you can turn the PDLC Film from clear (transparent) to frosted (opaque).
•  Custom shape and size is available, and can be cut with scissors and knife easily.

Product Details

Non-adhesive PDLC Film is the original type (standard type) PDLC film, this film is mainly designed to sandwich laminated between 2 layers of glass in order to make a final switchable PDLC glass product. It’s a middle material to be processed into the final switchable glass product. It is also called Smart Glass Film, Switchable Smart Film, Privacy Glass Film, PDLC Film, Magic Glass Film, Electronic Film, etc. When power is on it becomes transparent, when power is off it becomes opaque.

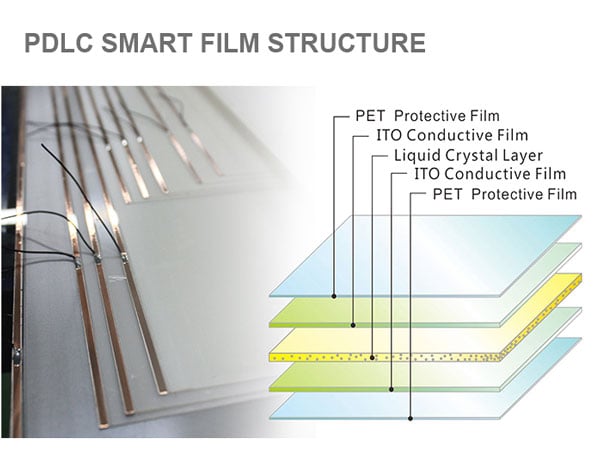

Product Structure

Working Principle

PDLC (polymer dispersed liquid crystal) film is a light-modulating medium whose light scattering is adjustable by applying an electric field. When power is off, visible light scatters through the PDLC, and the film turns opaque; when power is on, visible light transmits the PDLC and the film turns clear.

Product Technical Sheet

Item Description Parameters
Product Function Power on status: Transparent
Power off status: Opaque
Light Transmission (Parallel light) ON >85%
OFF <1%
Visible Light Transmission ON >86%
OFF >55%
Visual Angle >150°
UV Blocking OFF >99% /ON >75%
IR Blocking OFF >65% /ON >20%
Haze OFF >92% /ON < 4%
Operating Voltage 60V AC
Frequencies 50 to 60Hz
Current 100mA/m2
Response Time ON → OFF: 40ms
OFF → ON: 10ms
Power Consumption POWER ON: 4W/m2/hr
Operating Temperature -30°C ~76°C
Storage Temperature -45°C ~100°C/120°C (3H)
Service Life Around 10 years (Power on)
Film Thickness 0.38mm
Film Size in Roll 1.2/1.5/1.8/2.0m*50m
Film Package Size 1.5/1.8/2.1/2.3m*0.4m*0.4m
Packing gross weight 45KG/50KG/55KG/60KG

Transparency Changes With Voltage Linearly

The smart film transparency will change when you dim control its voltage, closer to 0V voltage, it will be more opaque; And when closer to Rated voltage(60V), it will be more clear and transparent.

regular type pdlc film

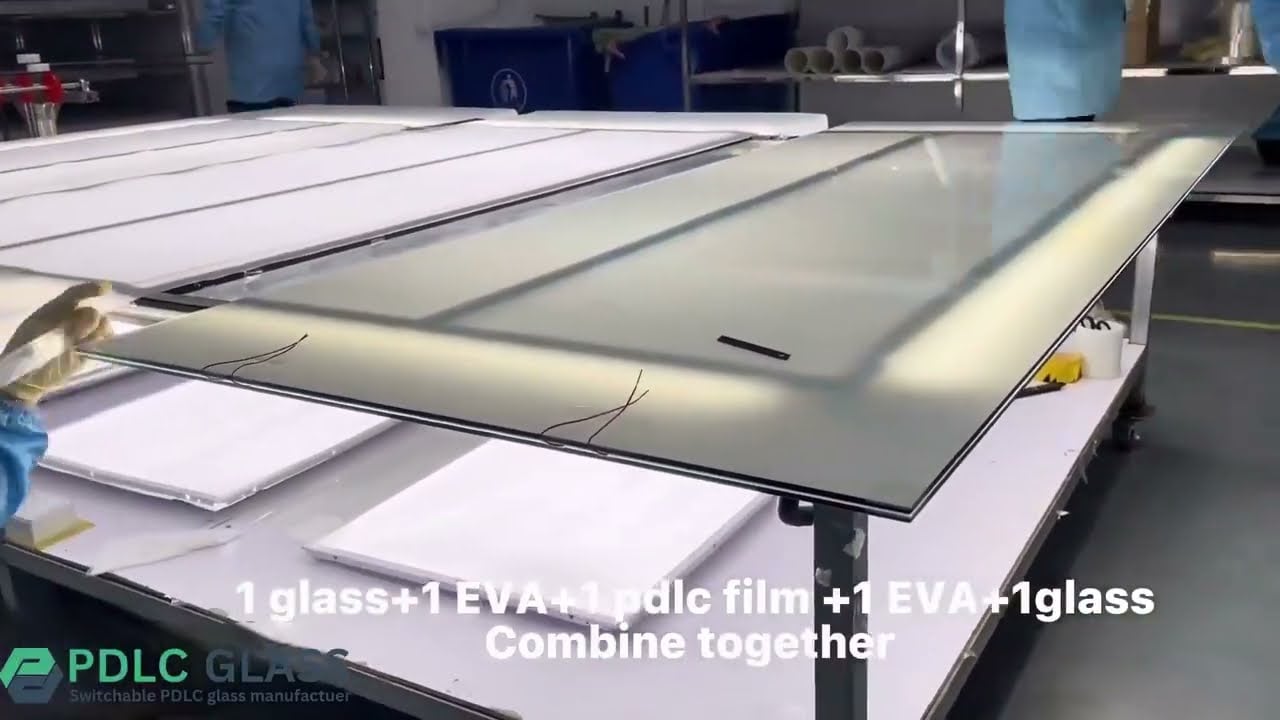

How to laminate PDLC Film into smart PDLC glass:

To well protect the PDLC film and let it a long time to work, especially in an environment with much moisture, we suggest the customer use non-adhesive smart film to be sandwich laminated between 2 layers of glass.

Choosing to purchase our lamination smart film and have a local glass company create the final products (smart glass). This method cuts down on shipping costs and potential loss due to breakage vs purchasing our finished glass when a dealer is not nearby.

How to laminate smart PDLC film into smart glass #smartglasstech #pdlcfilm #smartfilm

Detailed lamination guide please see here.

Product control and wiring

Smart PDLC Glass can be controlled by a normal switch, touch switch, remote control, voice control, smartphone control, etc. It also can be integrated into your smart home system to control.

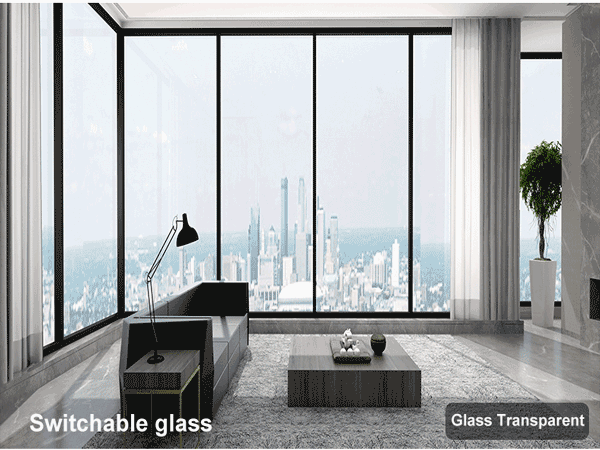

Product Application

– Common application

•  Residential – bathroom/shower enclosures, partitions
•  Commercial – conference rooms, office doors/partitions, reception
•  Retail – changing rooms, projection displays
•  Healthcare – ICU Doors, Nurseries, ERs, ORs, clinic partitions
•  Hospitality – bathroom /shower enclosures, partitions
•  Banking – ballistic teller lines, transaction windows, safe deposit rooms

– Projection and touchscreen application

When Switchable PDLC Glass is in opaque status, it can work as a good rear Projection Screen. Equipped the PDLC Glass with a Rear Projector & Infrared touch frame, will function it with Touch Screen Capability, is a revolutionary product that lets you present ideas in a new way.
