Self-adhesive PDLC smart film is an improved product from the non-adhesive PDLC film, by adding a self-cling adhesive layer on the rear side of the normal PDLC film, then the film has a self-adhesive function. The film can stick directly to existing glass, which provides a simple and cost-effective alternative to retrofit the existing glass into switchable PDLC glass. When power is on it becomes transparent, when power is off it becomes opaque.
Working principle
Smart PDLC film(Polymer Dispersed Liquid Crystal Film) is an interlayer film in the middle of Switchable PDLC Glass. When there is no electric field(Power off), the Liquid Crystal Molecules inside are scattered irregularly, so the incident light will disperse and can not pass through, and the PDLC film appears Opaque(Milky White). When there is an electric field(Power on), the Liquid Crystal Molecules are arranged in an orderly manner, so the incident light passes through freely, and the PDLC film appears Transparent(Clear state).
Supply Mode
We supply both customized cut-to-sheet size smart film and standard roll-size smart film to meet different clients’ requirements.
PDLC Smart Film Sample Testing
Product Technical Sheet
| Item Description | Parameters |
| Product Function | Power on status: Transparent |
| Power off status: Opaque | |
| Light Transmission (Parallel light) | ON >85% |
| OFF <1% | |
| Visible Light Transmission | ON >86% |
| OFF >55% | |
| Visual Angle | >150° |
| UV Blocking | OFF >99% /ON >99% |
| IR Blocking | OFF >65% /ON >30% |
| Haze | OFF >90% /ON < 5% |
| Operating Voltage | 48~60V AC |
| Frequencies | 50 to 60Hz |
| Current | 100mA/m2 |
| Response Time | ON → OFF: 40ms |
| OFF → ON: 10ms | |
| Power Consumption | POWER ON: 4W/m2/hr |
| Adhesive Film Peel Strength (KG) | 1.5-1.7KG |
| Operating Temperature | -30°C ~76°C |
| Storage Temperature | -45°C ~100°C/120°C (3H) |
| Service Life | Around 10 years (Power on) |
| Film Thickness | 0.5mm |
| Film Size in Roll | 1.2/1.5/1.8m*50m |
| Package size | 1.5/1.8/2.1m*0.4m*0.4m |
| Packing gross weight | 50KG/55KG/60KG |
Product advantage
- Easy Installation: Adhesive smart film does not require you to replace your windows and it can be cut to any size and retrofit onto any existing window or glass surface.
- Privacy on Demand: You can turn the glass into opaque to protect your privacy. And turn into transparent to extended viewing space.
- Energy Efficient: Smart film is not just for privacy or sunblock, but it also absorbs UV rays and reflects infrared to keep your room temperature lower and in turn save you energy.
- Interactive Projection: Switchable film can work as a projection screen when the film is opaque. It can even work as an interactive screen if integrate with the touch frame system.
- Multi-purpose Usage: You can use it on any glass surface – in the home, the office, or the shop front. Or anywhere else you can think of.
- Flexible Control: Smart glass can be controlled by a normal switch, touch switch, remote control, voice control, smartphone control, etc. It also can be integrated into your smart home system.
Product control and wiring

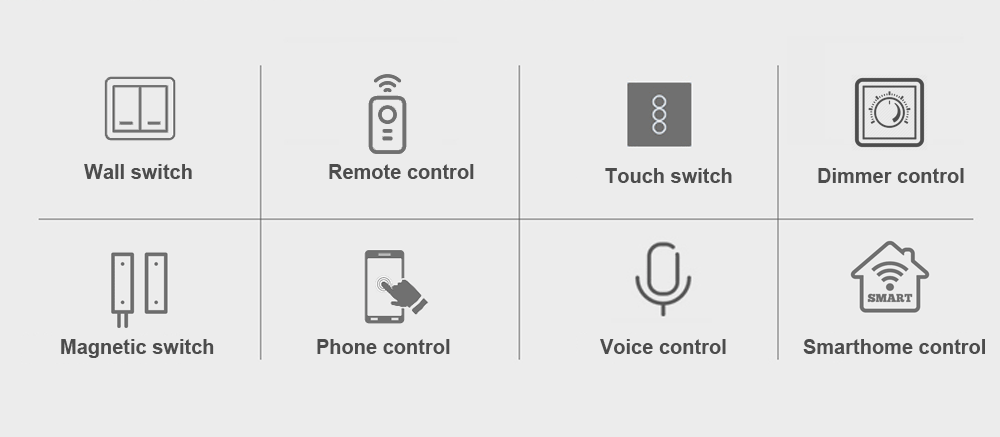

Smart PDLC Glass can be controlled by a normal switch, touch switch, remote control, voice control, smartphone control, etc. It also can be integrated into your smart home system to control.

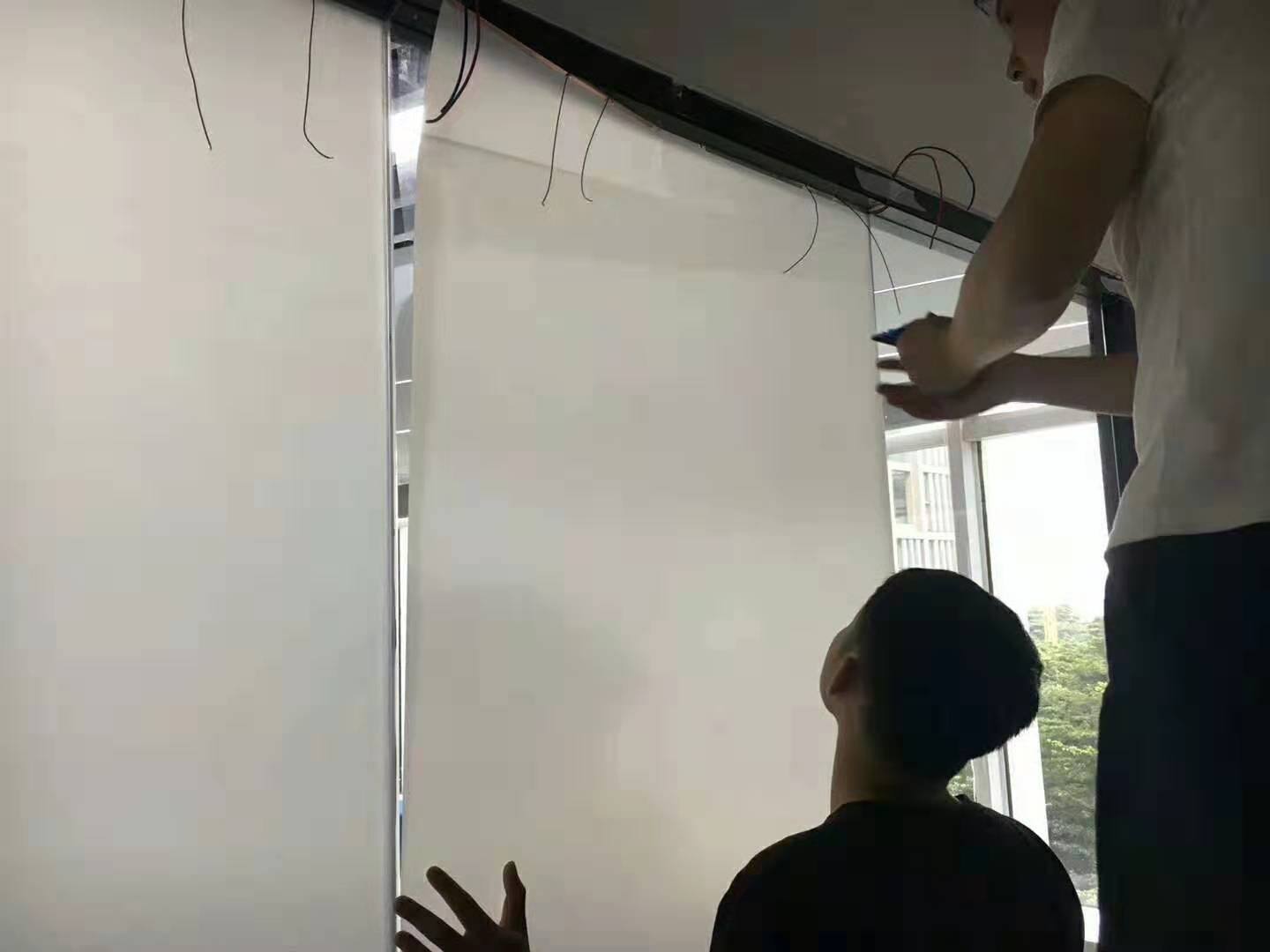

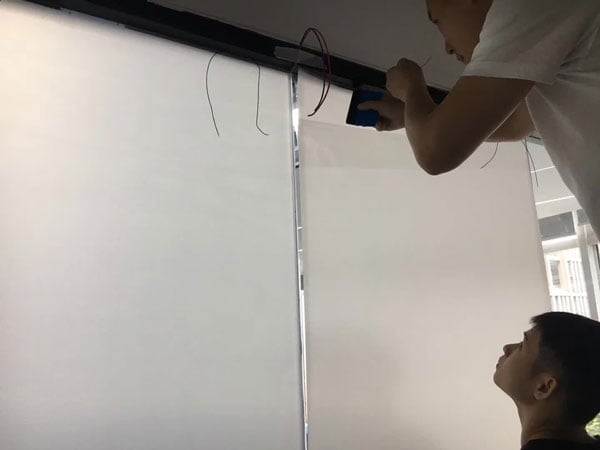

Smart film installation instruction
SMART FILM INSTALLATION MAIN STEPS
– Take out the PDLC film
– Measure and re-check size
– Clean glass surface and edge
– Cut the film to shape if needed
– Attach the smart film, use a squeegee to remove bubbles
– Connect the wires
– Secure and hide wires in gaps
– Seal with black or white color glass silicone sealant to hide the wires
– Done, check the final project effects
Product Application
– Common application
• Residential – bathroom/shower enclosures, partitions
• Commercial – conference rooms, office doors/partitions, reception
• Retail – changing rooms, projection displays
• Healthcare – ICU Doors, Nurseries, ERs, ORs, clinic partitions
• Hospitality – bathroom /shower enclosures, partitions
• Banking – ballistic teller lines, transaction windows, safe deposit rooms
– Projection and touchscreen application
When Switchable PDLC Glass is in opaque status, it can work as a good rear Projection Screen. Equipped with the PDLC Glass with a Rear Projector & Infrared touch frame, will function with Touch Screen Capability, is a revolutionary product that lets you present ideas in a new way.
